Door drop seal | HTN Prime

See product map Brand: HTN Prime

See product map Category: Fireproof Equipment

See product map SKU: N/A

Sizes

107CM
122CM
92CM

Clear

Product Introduction Product Feature Technical Specification Comments

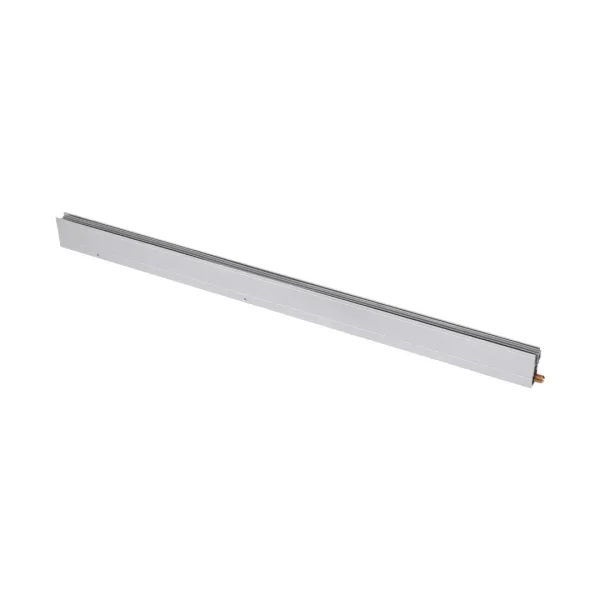

A guillotine door seal is a sealing system designed to prevent the ingress of air, dust, water, or other external elements around or beneath doors. This type of seal is primarily used for doors requiring precise sealing and isolation—such as those in buildings with high standards for acoustic and thermal insulation. The system consists of a movable strip or profile installed at the bottom edge of the door; when the door closes, this component automatically lowers to fill the gap between the door and the floor or door frame.

The term “guillotine” refers to the operating mechanism of this seal, which functions similarly to a guillotine: when the door closes, the seal moves vertically downward, and it returns to its original position when the door is opened. These types of seals are particularly used for soundproof doors, fire doors, or exterior doors that require effective insulation. The HTN Prime guillotine-style door bottom seal is available in three sizes—92 cm, 107 cm, and 122 cm—and can be adjusted or cut by up to 20 cm as needed. The main material of this weatherstrip is aluminum; the lower section is made of high-density plastic, and the pin component is brass.

Additional information

Brand	HTN Prime
Sizes	107CM, 122CM, 92CM
Diagonal	1.4cm
width	3.4cm

1. Two-step authentication: Open the door by combining two identification methods (password, fingerprint, card or face recognition) to increase security.
2. Passage Mode: Put the lock in a temporary open state for a specified period of time without the need for authentication.
3. Child Lock: Restricts the door from opening from the inside when activated to prevent children or unauthorized persons from leaving.
4. Human body recognition sensor: A sensor that detects the presence or movement of people, enabling faster and contactless entry.
5. Palm Vein Recognition: Accurate and unforgeable security by identifying the pattern of palm veins.
6. Finger Vein Recognition: Unforgeable and secure identity by identifying the pattern of finger veins.
7. Deadbolt lock: An internal lock with a simple lever that prevents the door from being opened from the outside but can be easily opened from the inside.
8. One-time password (OTP): A time-limited, one-time-use temporary code for temporary, secure access.
